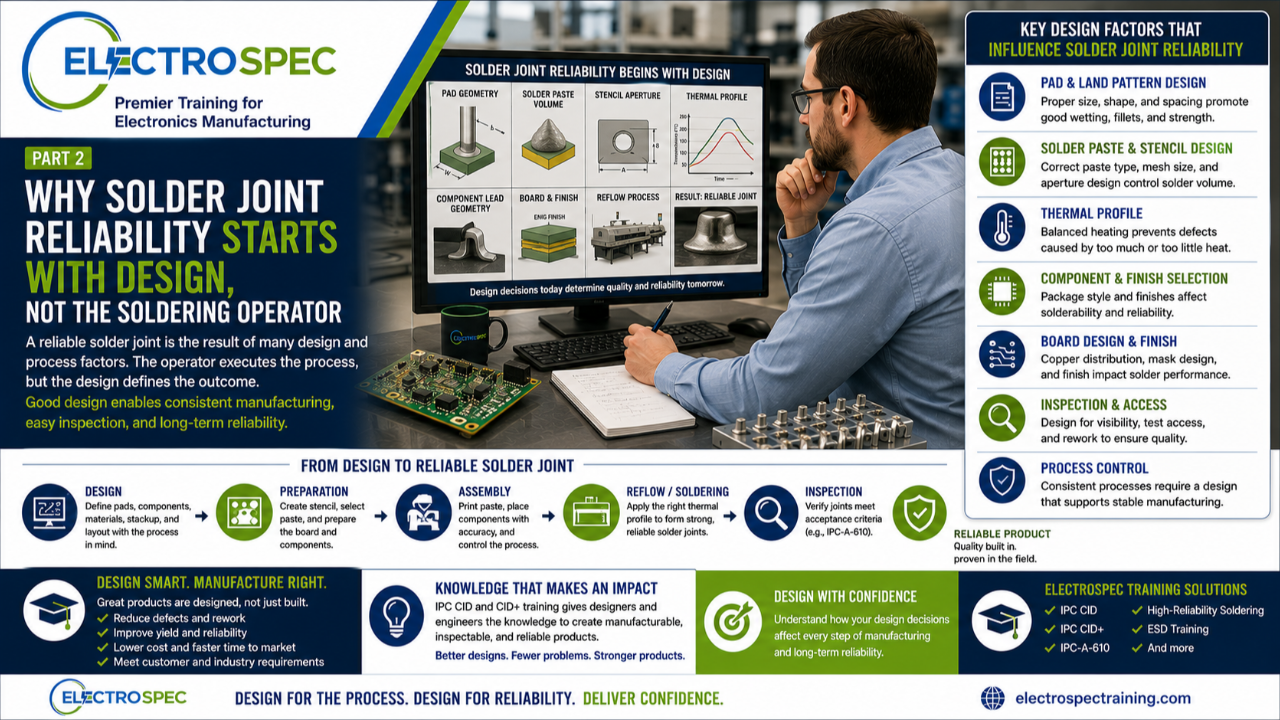

Why Solder Joint Reliability Starts with Design, Not the Soldering Operator

In the first article of this design series, we discussed why electronics designers must design for the manufacturing process.

A design can be electrically correct and still be difficult to manufacture, inspect, qualify, or keep reliable in the field.

Nowhere is that more obvious than solder joint reliability.

Many people think solder joint quality begins with the person soldering the product.

Sometimes it does.

But in modern electronics manufacturing, many solder joints are not created by hand. They are created by a manufacturing system.

For surface mount technology, solder joint formation depends heavily on design decisions made long before the product reaches the production floor.

Solder Joints Are Influenced Before Assembly Begins

A solder joint may appear during assembly, but many of the conditions that determine its success are established during design.

Designers influence:

• Component selection
• Package style
• Lead or termination geometry
• PCB land pattern
• Pad size
• Pad spacing
• Solder mask design
• Board finish
• Component finish
• Thermal mass
• Copper distribution
• Stencil aperture design
• Solder paste volume
• Inspection access
• Rework access

The operator or machine may place the component and run the process, but the design often determines whether that solder joint is easy, difficult, or nearly impossible to form consistently.

SMT Soldering Is a System

Surface mount soldering is not simply “put solder on the board.”

It is a controlled process involving design, materials, equipment, and process engineering.

A typical SMT solder joint is influenced by:

• PCB pad geometry
• Component termination geometry
• Solder paste chemistry
• Solder powder size
• Stencil thickness
• Stencil aperture design
• Paste deposition
• Placement accuracy
• Reflow profile
• Flux activation
• Wetting behavior
• Thermal balance
• Cooling rate
• Cleaning requirements where applicable

If those factors are not aligned, defects can occur even when operators follow the work instructions.

Pad Geometry Matters

Pad design has a major effect on solder joint formation.

If the pad is too small, there may not be enough solderable area to form the intended joint.

If the pad is too large, excessive solder volume or component movement may become a concern.

If pad geometry does not match the component termination, the solder joint may be inconsistent, difficult to inspect, or vulnerable to reliability problems.

Good land pattern design helps promote:

• proper wetting
• stable component placement
• consistent solder volume
• acceptable fillet formation
• reliable inspection
• reduced tombstoning
• reduced bridging
• reduced opens
• reduced rework

A strong soldering process begins with a design that allows the process to succeed.

Component Selection Affects Solderability

Designers also influence reliability through component selection.

Different component packages create different assembly and inspection challenges.

Consider the difference between:

• chip components
• gull-wing leads
• J-leads
• bottom termination components
• BGAs
• connectors
• large thermal mass components
• fine-pitch devices
• through-hole components
• press-fit or mixed-technology parts

Each component type has different soldering, inspection, and reliability considerations.

Some components are easy to visually inspect.

Others may require AOI, X-ray, electrical test, process controls, or other verification methods.

The designer should understand how component selection affects the ability to manufacture and verify the product.

Stencil Design and Solder Paste Volume Matter

For SMT assemblies, solder paste deposition is one of the most important process inputs.

But the design still plays a major role.

Stencil aperture design, pad geometry, component pitch, paste volume, and solder mask definition all interact.

Too little solder paste may contribute to opens, weak joints, or insufficient wetting.

Too much solder paste may contribute to bridging, solder balls, component floating, voiding, or inconsistent joint geometry.

The designer and process engineer should work together to ensure that the board design supports stable paste printing.

This is especially important for fine-pitch components, bottom termination components, small chip components, and mixed-technology assemblies.

Thermal Balance Affects Reflow

Reflow soldering depends on heat.

But heat does not affect every area of a circuit board equally.

Large copper areas, ground planes, heavy components, connectors, board thickness, component density, and thermal relief design can all affect the reflow profile.

If one area of the board heats slowly while another heats quickly, the process engineer may struggle to create a profile that works for everything.

That can lead to:

• insufficient wetting
• cold or disturbed-looking joints
• component movement
• tombstoning
• excessive intermetallic growth
• thermal damage
• incomplete reflow
• inconsistent results across the assembly

Thermal design is not only an electrical or mechanical issue.

It is also a solder joint reliability issue.

Through-Hole Joints Are Also Design-Dependent

Through-hole solder joints are also influenced by design.

Whether the process uses wave soldering, selective soldering, drag soldering, robotic soldering, or manual soldering, the designer must consider how the joint will be formed.

Important design factors include:

• hole diameter
• lead diameter
• hole-to-lead relationship
• barrel plating
• annular ring
• board thickness
• component spacing
• lead protrusion
• thermal relief
• copper distribution
• solder access
• flux access
• drainage
• inspection visibility

A through-hole joint that is easy to hand solder may not be well suited for wave or selective soldering.

Likewise, a dense layout may create access issues for selective solder nozzles or inspection tools.

Operators Execute the Process They Are Given

Operators play an important role in manufacturing.

But operators should not be expected to overcome poor design decisions.

If the land pattern is wrong, the operator cannot fix it during normal production.

If component spacing blocks access, the operator cannot create space that does not exist.

If the thermal mass is unbalanced, the operator cannot redesign the copper distribution.

If the joint is hidden, the inspector cannot visually inspect what cannot be seen.

A strong design makes it possible for operators and process engineers to produce consistent results.

A weak design forces manufacturing to compensate.

Inspectors Verify the Outcome

Inspectors evaluate whether the finished assembly meets applicable acceptance criteria.

For electronic assemblies, IPC-A-610 is commonly used to evaluate workmanship and acceptability.

But inspectors do not create the solder joint.

They verify the result.

If a solder joint repeatedly fails acceptance criteria, the root cause may not be the inspector or even the operator.

It may be the design.

That is why designers should understand the final acceptance expectations before the product is released to manufacturing.

Designers Do Not Need to Become Operators

The point is not that PCB designers must become soldering operators.

The point is that designers must understand how solder joints are formed and what design decisions influence their reliability.

Designers should understand enough to ask:

• Is this land pattern appropriate?
• Can this component be soldered consistently?
• Can this joint be inspected?
• Is there enough access for rework?
• Is the thermal mass balanced?
• Is this package appropriate for the product environment?
• Will the selected board finish support solderability?
• Will the design support the intended assembly process?
• Will this product meet the required acceptance criteria?

Those questions help prevent problems before production begins.

Solder Joint Reliability Is a Team Responsibility

Reliable solder joints require coordination between:

• Product design engineering
• PCB layout
• process engineering
• manufacturing engineering
• materials engineering
• quality engineering
• operators
• inspectors
• suppliers

Each group influences the final outcome.

But the earlier a problem is prevented, the less expensive it is to correct.

Designers have tremendous influence because their decisions establish the foundation for everything that follows.

Final Thought

Solder joint reliability does not begin when an operator touches the product.

It begins when the designer selects the component, defines the land pattern, balances the layout, chooses materials, and considers the manufacturing process.

The solder joint is formed in manufacturing, but many of its success factors are determined in design.

A good design makes reliable solder joints achievable.

A poor design makes manufacturing fight uphill.
