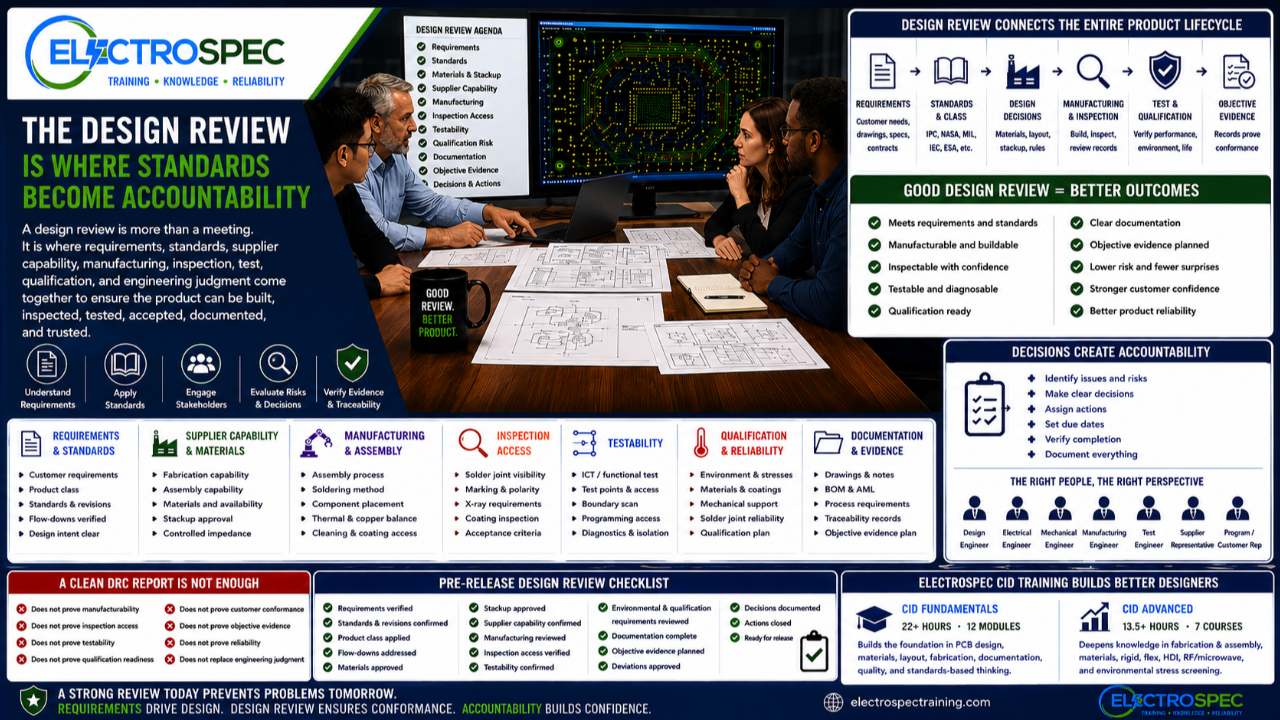

The Design Review Is Where Standards Become Accountability

A design review should be more than a meeting.

It should be more than a checklist.

It should be more than a quick look at the schematic and layout before release.

A strong PCB design review is where requirements, standards, supplier capability, manufacturing, inspection, test, qualification, and engineering judgment come together.

It is where the design team asks:

Can this product be built, inspected, tested, accepted, documented, and trusted?

That question matters because standards do not create accountability by themselves.

A standard may define a requirement.

A drawing may invoke a class.

A tool may run a design rule check.

A supplier may review the files.

But the design review is where people confirm that the design actually supports the full requirement set.

Design Review Is Not Just a Layout Check

A PCB layout can look clean and still be incomplete.

A layout may pass DRC and still have manufacturing risk.

A board may route correctly and still have poor inspection access.

A stackup may support electrical performance and still create fabrication risk.

A component placement may support routing and still create soldering, cleaning, coating, or rework problems.

A test strategy may be assumed but not actually supported by the layout.

That is why design review must go beyond appearance.

A good design review looks at the product as a system.

The Review Should Start with Requirements

Before reviewing details, the team should confirm the requirement basis.

That includes:

• customer requirements
• drawings and specifications
• contracts and purchase orders
• product class
• applicable standards
• revision levels
• material requirements
• fabrication requirements
• assembly requirements
• inspection requirements
• test requirements
• qualification requirements
• documentation requirements

If the team does not know what requirements apply, the review cannot be complete.

The first accountability question is simple:

Are we reviewing the design against the correct requirements?

Standards Must Be Applied, Not Merely Listed

A drawing may call out IPC standards, customer specifications, Class 3 requirements, NASA requirements, ESA requirements, military specifications, IEC requirements, or internal company requirements.

But listing a standard is not the same as applying it.

The design review should ask:

• What standard applies to this decision?
• What revision applies?
• What product class applies?
• What requirement is being controlled?
• How did the design implement that requirement?
• How will the requirement be verified?
• What objective evidence will prove conformance?

This is where standards become accountability.

The team should not only say, “The standard is listed.”

The team should ask, “Does the design support the standard?”

Supplier Capability Must Be Reviewed Early

A design review should include fabrication and assembly capability.

A design may be technically possible but still difficult for the selected supplier to build consistently.

The team should review:

• stackup capability
• material availability
• copper thickness
• conductor width and spacing
• drill sizes
• via aspect ratios
• annular ring
• HDI structures
• flex or rigid-flex construction
• controlled impedance requirements
• solder mask registration
• surface finish
• panelization
• assembly process capability
• inspection methods
• coating and cleaning capability

Supplier capability does not replace customer requirements or standards.

But it helps determine whether the design can be built reliably.

A strong review identifies manufacturability risks before release, not after the supplier raises a hold.

Manufacturing Must Have a Voice

Manufacturing should not see the design for the first time after release.

Manufacturing input helps identify risks in assembly, soldering, handling, cleaning, coating, rework, and process control.

A design review should ask:

• What assembly process will be used?
• Is the layout compatible with SMT reflow, wave soldering, selective soldering, manual soldering, or robotic soldering?
• Are land patterns appropriate?
• Are thermal reliefs appropriate?
• Are components spaced for assembly?
• Are heavy components supported?
• Are connectors protected from strain?
• Can the board be cleaned?
• Can conformal coating be applied if required?
• Can the assembly be handled safely?
• Is rework possible or prohibited?

Good design gives manufacturing a fair chance to succeed.

Inspection Access Must Be Confirmed

Inspection should be planned before production.

A design that cannot be inspected creates acceptance risk.

The review should ask:

• Can solder joints be inspected?
• Are polarity marks visible?
• Are reference designators useful?
• Are bottom termination components addressed?
• Is X-ray inspection required?
• Can hardware installation be verified?
• Can coating coverage be inspected?
• Can cleanliness be verified?
• Can damage or defects be detected?
• Are acceptance criteria clear?

If inspection access is limited, the design review should identify alternate verification methods.

Inspection strategy should not be discovered at final inspection.

Testability Must Be Designed In

Testing is also part of design accountability.

A product may work in theory but still be difficult to verify in production.

The review should consider:

• in-circuit test access
• functional test access
• programming access
• boundary scan
• connector access
• diagnostic access
• environmental test monitoring
• failure isolation
• fixture access
• acceptance test records

Test points, connectors, diagnostic features, and access requirements must be planned.

A design that cannot be tested efficiently may create production delays, poor troubleshooting, weak evidence, and customer risk.

Qualification Risk Must Be Reviewed Before Release

If the product must survive shock, vibration, thermal cycling, humidity, altitude, contamination, salt fog, long storage, transportation, or harsh use, those conditions must be part of the design review.

Qualification risk may involve:

• material selection
• stackup
• via reliability
• microvia structures
• solder joint fatigue
• component package selection
• board mounting
• connector support
• cable strain relief
• coating strategy
• cleanliness
• thermal paths
• environmental test access

Qualification failure is expensive because it happens late.

The design review is the right time to ask whether the product is ready for the environment it must survive.

Documentation Must Match the Design Intent

A design review should also verify documentation.

The manufacturing package must clearly communicate the design intent.

That may include:

• fabrication drawings
• assembly drawings
• notes
• stackup details
• material requirements
• surface finish
• solder mask requirements
• controlled impedance requirements
• inspection requirements
• test requirements
• coating requirements
• cleaning requirements
• serialization or traceability requirements
• qualification requirements
• approved manufacturer information

A good design can fail if the documentation is unclear.

Documentation is not just paperwork.

It is how the design intent is transferred to manufacturing, inspection, test, and quality.

Objective Evidence Should Be Planned

For high-reliability products, objective evidence is part of the design system.

The review should identify what evidence will be needed.

Examples include:

• material certifications
• fabrication records
• assembly records
• inspection reports
• test results
• qualification reports
• process control records
• configuration records
• traceability records
• deviation approvals
• nonconformance records

The team should ask:

What evidence will prove this product met the requirement?

If that evidence cannot be produced, the requirement may not be fully planned.

Design Review Should Include the Right People

A strong review includes the people who understand the product from different angles.

That may include:

• PCB designer
• electrical engineer
• mechanical engineer
• process engineer
• manufacturing engineer
• quality engineer
• inspector
• test engineer
• reliability engineer
• supplier representative
• program or customer representative when appropriate

Each person sees different risks.

The designer sees layout intent.

The process engineer sees build risk.

The inspector sees acceptance risk.

The test engineer sees verification risk.

The quality engineer sees evidence and compliance risk.

The supplier sees capability risk.

A better review happens when those perspectives are included before release.

A Design Review Should Create Decisions

A design review should not only identify concerns.

It should create decisions.

Those decisions should be documented.

Examples include:

• requirement confirmed
• supplier capability accepted
• material approved
• stackup approved
• inspection method defined
• test method defined
• coating strategy approved
• qualification risk accepted or mitigated
• deviation required
• customer clarification needed
• redesign required
• action assigned

Without documented decisions, the review may become a conversation with no accountability.

A good design review produces a record.

Design Review Is Where Traceability Is Tested

Standards traceability sounds good in theory.

Design review tests whether it is real.

The team should be able to trace:

Requirement source → design decision → implementation → verification method → objective evidence

For example:

A customer environmental requirement may drive material selection, stackup, connector support, coating strategy, test access, qualification testing, and inspection records.

A Class 3 requirement may drive fabrication expectations, solder joint design, inspection access, process control, and documentation.

An RF requirement may drive material selection, controlled impedance, stackup, copper control, supplier capability, and test strategy.

A traceable design is easier to review, easier to build, easier to inspect, easier to test, and easier to defend.

DRC Is Only One Part of the Review

Design rule checks are valuable.

They should be used.

But a clean DRC report is not a complete design review.

DRC can help confirm that the layout followed the configured rules.

It does not prove:

• the rules were correct
• customer requirements were included
• supplier capability was confirmed
• manufacturing risks were addressed
• inspection access is adequate
• test access is adequate
• reliability risks were reviewed
• qualification readiness is acceptable
• documentation is complete
• objective evidence is planned

The design review fills the gap between software checks and engineering accountability.

CID Builds the Review Mindset

ElectroSpec’s CID Fundamentals course helps designers build the foundation needed for disciplined design review.

The course includes 22+ hours of on-demand PCB design training across 12 structured modules covering materials, layout principles, mechanical and electrical considerations, thermal management, component technologies, interconnections, fabrication requirements, documentation, quality assurance, manufacturability, and standards-based design thinking.

That foundation helps designers understand what questions to ask before release.

CID is not only about knowing design topics.

It is about understanding how design choices affect the full product lifecycle.

CID Advanced Builds the Broader Review Framework

ElectroSpec CID Advanced expands into advanced areas that often require deeper design review.

The advanced track includes:

• PCB Fabrication & Assembly
• PCB Materials
• Rigid PCB Design
• Flexible PCB Design
• HDI PCB Design
• RF/Microwave PCB Design
• Environmental Stress Screening

Each area introduces review questions.

A flex design review must address bend reliability, materials, stiffeners, transition zones, and mechanical use.

An HDI review must address microvias, sequential lamination, supplier capability, and reliability.

An RF review must address stackup, impedance, copper, dielectric properties, connectors, and fabrication tolerance.

An environmental review must address shock, vibration, thermal cycling, humidity, qualification, and objective evidence.

Advanced design requires advanced review discipline.

A Practical Design Review Checklist

Before releasing the design, ask:

• Are the correct requirements identified?
• Are standards and revisions confirmed?
• Is the correct product class applied?
• Are customer flow-downs included?
• Are material requirements clear?
• Is supplier capability confirmed?
• Is the stackup approved?
• Is the assembly process understood?
• Is inspection access adequate?
• Is test access adequate?
• Are environmental and qualification risks addressed?
• Is documentation complete?
• Are deviations documented and approved?
• Is objective evidence planned?
• Are action items closed before release?

This type of review helps prevent expensive surprises.

Independently Developed by ElectroSpec

ElectroSpec’s CID and CID Advanced courses are independently developed by ElectroSpec.

They are not IPC-authorized training and they are not official IPC curriculum.

ElectroSpec developed these courses to provide practical, standards-connected, manufacturing-aware design training for students preparing for CID and CID+ certification.

The focus is not only on knowing standards.

The focus is on applying standards with judgment before the product is released.

Final Thought

The design review is where standards become accountability.

It is where requirements are confirmed.

It is where design decisions are challenged.

It is where supplier capability is considered.

It is where manufacturing, inspection, test, qualification, documentation, and evidence are reviewed.

A design review should not be a formality.

It should be the point where the team decides whether the product is ready to move from design intent to manufacturing reality.

A good review protects the designer.

It protects manufacturing.

It protects the customer.

Most importantly, it protects the product.

Related ElectroSpec Training

ElectroSpec’s CID Fundamentals course provides 22+ hours of on-demand PCB design training across 12 structured modules.

ElectroSpec’s CID Advanced training expands into PCB Fabrication & Assembly, PCB Materials, Rigid PCB Design, Flexible PCB Design, HDI PCB Design, RF/Microwave PCB Design, and Environmental Stress Screening.

Together, these courses help designers build the standards-connected foundation needed for CID and CID+ certification preparation.

Coming Next

The Release Package: Where Design Intent Becomes Manufacturing Instruction

In the next article, we will discuss why fabrication drawings, assembly drawings, notes, material requirements, standards callouts, inspection requirements, test requirements, and objective evidence planning must clearly communicate the designer’s intent to manufacturing.

IPC CID Certification — ElectroSpec

IPC CID+ Certification — ElectroSpec

IPC CID/CID+ Bundle — Complete PCB Design Certification — ElectroSpec
